Product Details:
|
Gear Ratio: | 6:1 | Application: | Endodontic Root Canal |
---|---|---|---|
ReciReciprocating Angle Range: | 10°/20°/400° | Power Supply: | ICR18500, 3.7V 1900mAh ±10% |
Brand: | FINER | Speed Range: | 120rpm-1000rpm |
Torque Range: | 0.5N.cm - 4.0N.cm | Feature: | Build In Apex |
Screen: | 0.96 Inch TFT Color LCD | ||
High Light: | 120rpm Apex Locator Endo Motor,Apex Locator Endo Motor Canal Treatment |
A specialist dental tool used for endodontic operations is called an endo motor. It facilitates accurate and effective root canal preparation by rotating endodontic files at a controlled speed and torque using a motorized handpiece.

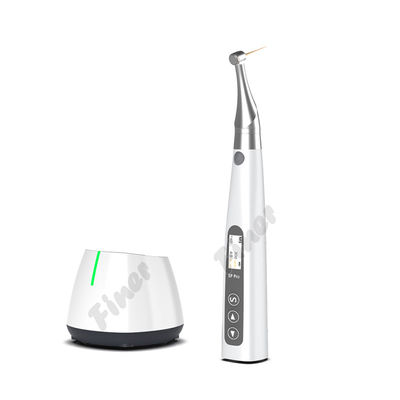

The device consists of a control unit and a handpiece, with the control unit housing the motor and electronics that regulate the speed and torque of the handpiece and the cord-connected handpiece housing the endodontic file.
Endo motors have several settings and features, including pre-programmed settings for particular file types, auto-reverse capabilities to prevent file breakage, and settings that can be customized to meet specific needs.
Numerous features of endo motors can increase the effectiveness and security of the root canal process.
The risk of file breakage is decreased and efficiency is increased thanks to variable speed and torque control, which allows for exact control of the file's speed and torque. Some motors even have settings pre-programmed for certain file kinds, giving them a performance that is optimum.
An extra element that can contribute to safety during the procedure is the auto-reverse function. The motor automatically pauses and reverses the path of the file if it encounters too much resistance.

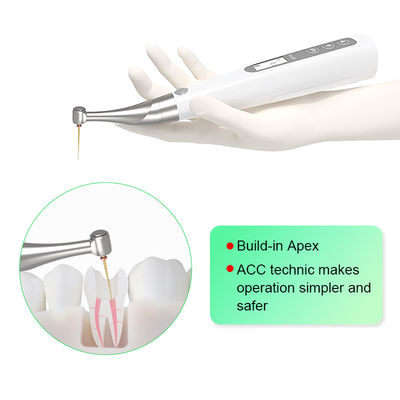

Radiographs are not necessary as accuracy is increased by integration with an apex finder.
The benefits of endo motors are completed with adjustable settings and a user-friendly interface with clear displays and simple controls. With the help of these capabilities, users can greatly simplify the process and modify the settings to suit their preferences.
Parameter | Value |
---|---|
Charger power supply | AC100-240V,50/60Hz |
Torque range | 0.5N.cm - 4.0N.cm |
Operation | Reciprocation,Forward(Clockwise Rotation),Reverse(Counter Clockwise Rotation) |
Application | Endodontic Root Canal |
Feature | Built-in apex |

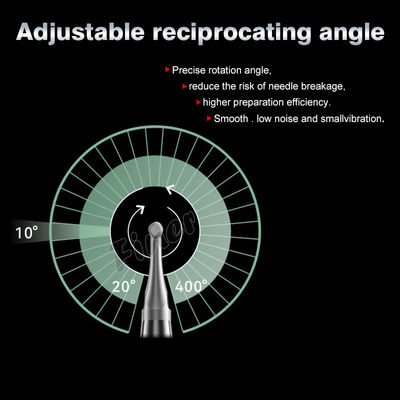

Reciprocating angle range | 10°/20°/400° |
Speed range | 120rpm-1000rpm |

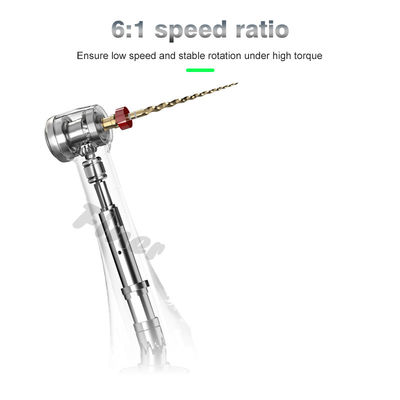

Gear ratio | 6:1 |

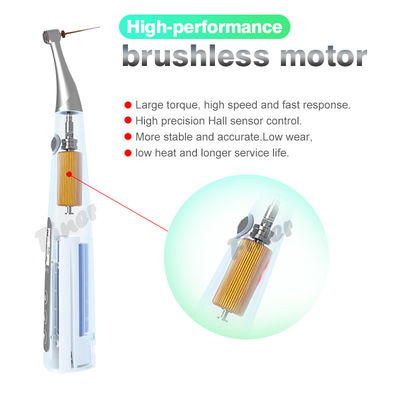

Motor | Brushless |
Power supply | 3.7V 1900mAh ±10% |
