Product Details:
|
Model: | Ten | Gear Ratio: | 16:1 |
---|---|---|---|
Application: | Endodontic Root Canal | ReciReciprocating Angle Range: | 30° ,60° ,90° ,150° ,180° , 210° ,250° ,370° |
Power Supply: | ICR18500, 3.7V 1900mAh ±10% | Brand: | FINER |
Speed Range: | 120rpm-650rpm | Torque Range: | 0.6N.cm - 4.0N.cm |
High Light: | 120rpm Root Canal Endo Motor,Adjustable Speed Root Canal Endo Motor |
An endo motor is a specialized dental instrument used for endodontic procedures. It uses a motorized handpiece to rotate endodontic files with controlled speed and torque, facilitating precise and efficient root canal preparation.

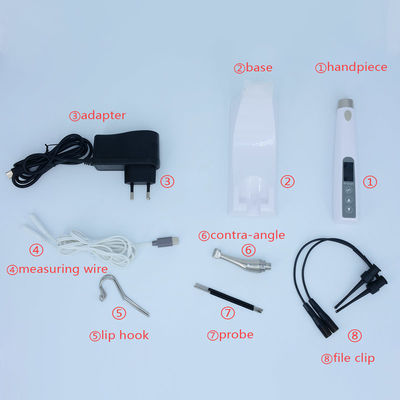

Consisting of a control unit and a handpiece, the control unit accommodates the motor and electronics regulating the speed and torque of the handpiece, while the handpiece holds the endodontic file and is connected to the control unit through a cord.
Endo motors have settings and functions, such as pre-programmed settings for specific file types, auto-reverse functions to prevent file breaking, and settings that can be tailored to individual requirements.
Endo motors have many features that can help make the root canal procedure more efficient and safe.
Variable speed and torque control allow for precise control of the speed and torque of the file, reducing the risk of file breakage and improving efficiency. Some motors even have pre-programmed settings for different types of files, giving them an optimized performance.
The auto-reverse function is an additional feature that can help ensure safety during the procedure. If too much resistance is encountered, the motor stops and reverses the direction of the file automatically.
Integration with an apex locator improves accuracy, reducing the need for radiographs.
Customizable settings and a user-friendly interface with clear displays and intuitive controls round off the features of endo motors. These features allow users to adjust the settings to their preferences and simplify the procedure significantly.
Parameter | Value |
---|---|
Charger power supply | AC100-240V,50/60Hz |
Torque range | 0.6N.cm - 4.0N.cm |
Operation | Forward(Clockwise Rotation),Reverse(Counter Clockwise Rotation),Reciprocation |
Application | Endodontic Root Canal |
Brand | FINER |
Reciprocating angle range | 30° ,60° ,90° ,150° ,180° , 210° ,250° ,370° |
Speed range | 120rpm-650rpm |
Gear ratio | 16:1 |
Model | Ten |
Power supply | ICR18500, 3.7V 1900mAh ±10% |

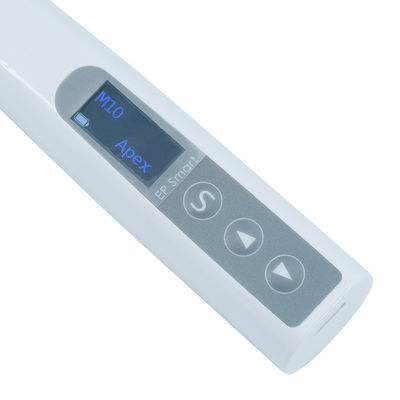

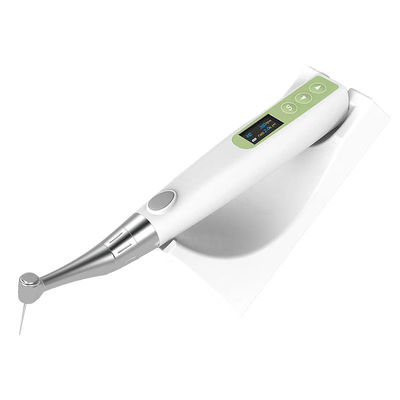

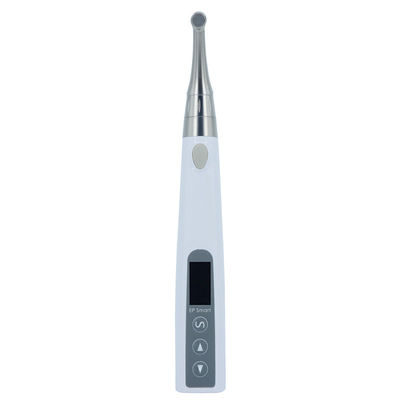

Apex Locator Endo Motor, also known as Root Canal Locator, is a specialized device used in endodontic root canal therapy. The FINER EP-Smart model is one of the best in the market, providing precise and reliable results in the diagnosis and treatment of endodontic diseases. It features an adjustable speed range of 120rpm-650rpm, and a reciprocating angle range of 30°, 60°, 90°, 150°, 180°, 210°, 250° and 370°. The torque range supported by the motor is 0.6N.cm to 4.0N.cm. With its ten models, the Apex Locator Motor offers superior performance and accuracy for endodontic root canal treatment. It is designed for fast and easy operation, providing users with the highest quality results in the shortest possible time.
Finer EP-Smart Endo Motor Locator is the perfect choice for your endodontic root canal needs. This tooth locator motor is designed with a reciprocating angle range of 30°, 60°, 90°, 150°, 180°, 210°, 250° and 370° to meet your exact needs. The 16:1 gear ratio makes it easy to use and the AC100-240V, 50/60Hz charger power supply ensures reliable performance. Made in China, the Finer EP-Smart Endo Motor Locator is the ideal tooth locator motor for all your endodontic needs.
