Product Details:
|
Product: | X-ray Machine | Model Number: | E-star |
---|---|---|---|
Warranty: | 12 Months | Packing: | Aluminum Alloy Box |
Name: | Dental X-ray Machine | Color: | White |
Feature: | Single Hand | ||
High Light: | Multipurpose Dental X Ray Machine,HD Dental X Ray Machine,White Handheld X Ray Unit |

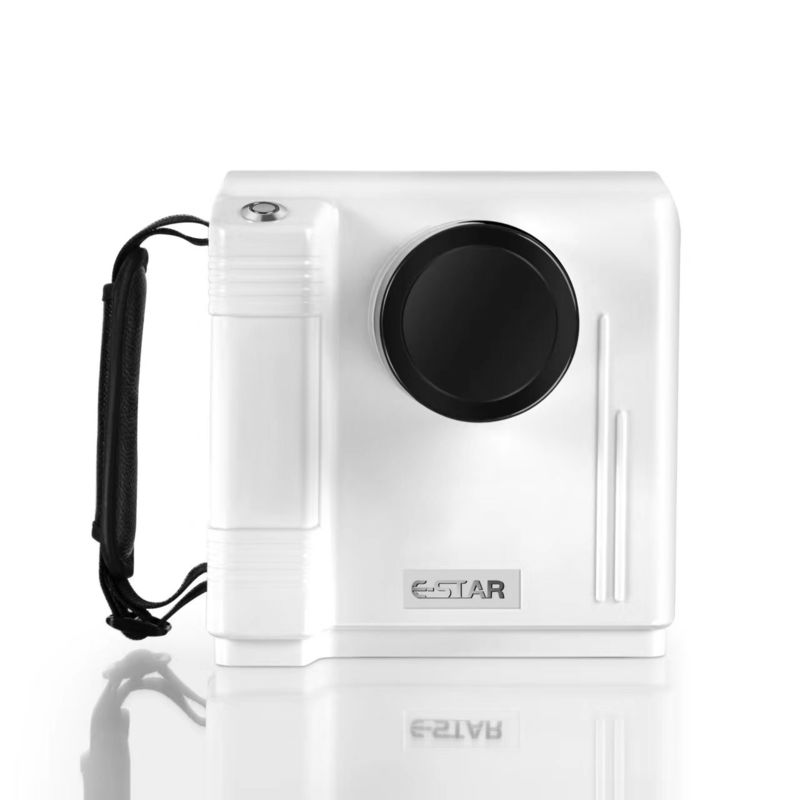

Chair Side HD Portable Single Hand Dental X-Ray Machine Unit
Dental X-ray Machine
|
|
Name | Dental X-ray machine |
Brand | E-star |
Focal spot to skin distance | 100mm±10mm |
Spot diameter | 45mm |
Battery capacity | 16V6A/5000mAh |
Net weight | 2.1kg |
Gross weight | 3.8kg |
Radiation leakage | <0.25mGy/h |
X-ray tube high voltage | 60KV |
X-ray tube current | 1mA |
Loading time | 0.2-2.0s |
Radiation time | 0.3-1.3s |
Frequency | 30-100KHZ |
Tube life span | AVG 10,000h |
Warranty | One year |
Packing size | 25*15*20 cm |
Weight | 3 kg |
Dental X-ray Sensor
|
|
Name | Dental X-ray digital sensor |
Model | HDR-500 |
Sensor | APS CMOS |
PCB | CPLD+USB |
Size | 39*27.5*6mm |
Active Size | 38.5*27.5cm |
Total pixe | 1604*1204 |
Active pixe | 1600*1200 |
Sensor connection | USB 2.0 |
Warranty | One year |
Clear Imaging & Ultra Low Radiation
E-STAR High-frequency portable oral X-ray machine, with clear imaging, ultra-low radiation, accurate data,
small size, light weight, long life and other characteristics, truly accurate, stable, clear, safe, durable.
E-STAR has built-in high voltage and high capacity rechargeable lithium battery to ensure the power input of high
voltage generator; exposure locking design reduces ineffective exposure caused by accidental operation, slows
the attenuation of ball head and lithium battery, and extends the service life of the equipment.Super capacitor
green environmental protection, electric power endurance, and the whole machine is only 1.5KG, small body
can be single hand operation; UHF double closed-loop inverter output technology stable input output, reduce soft ray damage.
Super-national level-1 energy efficiency standards, located in the industry-leading level.The E-STAR is equipped with Canon high-frequency DC tubes for clearer imaging to achieve ideal diagnostic results.
Power | 25.2V AC, 2.0A (X-RAY unit) |
Tube KV/mA | 60Kv, 2mA |
Freuquence | 80k Hz |
Exposure Time | 0.1 ~ 2.05s |
X-ray Tube Focus Spot Size | 0.3mm |
Toral Filtraction | 1.75mmAl + 1.0mmAl |

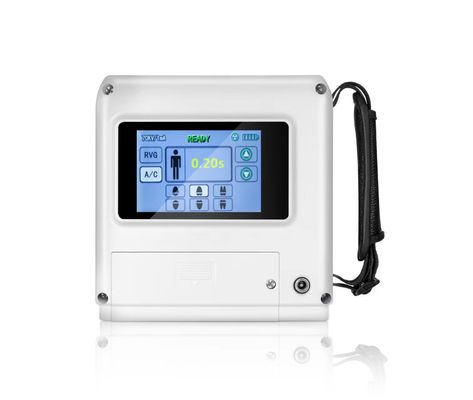

Display | LCD touch screen |
Packing Size | 310*280*220V |
Net Weight | 2kg |
