Product Details:
|

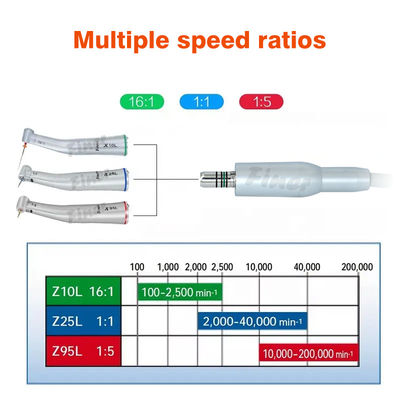

| Gear Ratio: | 1:1/1:5/16:1 | Voltage: | 110V/220V |
|---|---|---|---|
| OEM/ODM: | Available | Payment: | T/T, L/C, Western Union, Etc. |
| Material: | Metal, Plastic | Power: | 50W |
| Speed: | 0-40000rpm | Power Source: | Electricity |
| Spray: | Internal Water Spra | LED Illumination: | 4500-5500k |
| High Light: | OEM Dental Laboratory Equipments,40000rpm Dental Laboratory Equipments |
||
A brushless micro motor is a type of electric motor that is characterized by small size and the absence of brushes that are typically used in traditional motors to transfer power. Rather, using electronic commutation to control the motor's speed and direction, this type of motor consists of a rotor with permanent magnets and a stator with coils.
By sending a sequence of signals through the coils, the magnetic fields in the stator interacts with the magnets in the rotor. This process is then managed by an electronic speed controller (ESC) which regulates the current running through the motor coils.
Brushless micro motors are found in a variety of items such as, but not limited to, drones, remote-controlled cars, certain industrial and medical devices. They are a preferable option to brushed motors due to their higher efficiency and longer-lasting performance; lack of brushes also reduces the need for frequent maintenance.

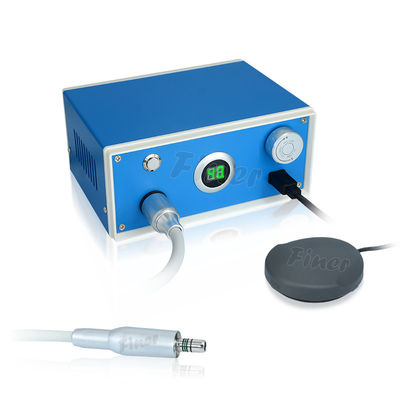

Firstly, connect the handpiece cable and foot control cable to the interface of the control box. Afterwards, make sure that the voltage marked on the control box is same as the one you're using. Then, plug the power cord into the power outlet.
Afterwards, adjust the speed control knob to the lowest speed "0". Following that, turn on the power of the control box. You are now ready to turn the speed control knob clockwise to increase the speed.
In case you need to change the direction of rotation, remember to turn off the motor first. Double check the handpiece stops rotating before you turn the forward/reverse switch to change the direction of rotation. When you want to use foot control, you will need to turn the hand control/foot control switch to the "poot" position.
| Parameters | Detail |
|---|---|
| OEM/ODM | Available |
| Function | Grinding, Polishing, Bone Surgery, Dental Clinic, Podiatry, Manicureetc. |
| Application | Dental Laboratory |
| Material | Metal, Plastic |
| Payment | T/T, L/C, Western Union, Etc. |
| Voltage | 110V/220V |
| LED Illumination | 4,500-5,000k |
| Type | Dental Laboratory Equipments |
| Power | 50W |
| Certificate | CE |
| Dental Micromotor | 40000rpm |
1,Connect the handpiece cable and foot control cable to the interface of the control box.
2,After confirming that the voltage marked on the control box matches the voltage you are using, plug the power cord into the power outlet.
3. Adjust the speed control knob to the lowest speed "0".
4. Turn on the power of the control box.
5. Turn the speed control knob clockwise to increase the speed.
6. If you need to change the direction of rotation, please turn off the motor first. After confirming that the handpiece stops
rotating, turn the forward/reverse switch to change the direction of rotation.
7,When the foot control is needed to control, turn the hand control/foot control switch to the "poot" position.
We offer a comprehensive range of technical support and services for Dental Laboratory Equipments. Our technical support team is available 24/7 to provide assistance with product installation, maintenance, and troubleshooting. We also provide online resources for product documentation, tutorials, and support forums. Our customer service team is available to assist with product orders, warranty information, and any other product inquiries. We also provide on-site services, such as preventive maintenance and repairs, for all of our Dental Laboratory Equipments.
Q1: What is Dental Laboratory Equipments?
A1: Dental Laboratory Equipments is a dental brushless micro motor unit with Micro motor model, made in China.
Q2: What is the purpose of the Dental Laboratory Equipments?
A2: The Dental Laboratory Equipments is used for dental treatments, such as grinding, cutting, polishing, and drilling.
Q3: What is the benefit of using Dental Laboratory Equipments?
A3: Dental Laboratory Equipments offers high precision and accuracy, as well as increasing the efficiency of the dental treatments.
Q4: What is included in the Dental Laboratory Equipments?
A4: The Dental Laboratory Equipments includes a dental brushless micro motor unit, a power supply, a speed controller, and other accessories.
Q5: Is the Dental Laboratory Equipments safe to use?
A5: Yes, the Dental Laboratory Equipments is made of high-quality materials and designed to be safe to use.
